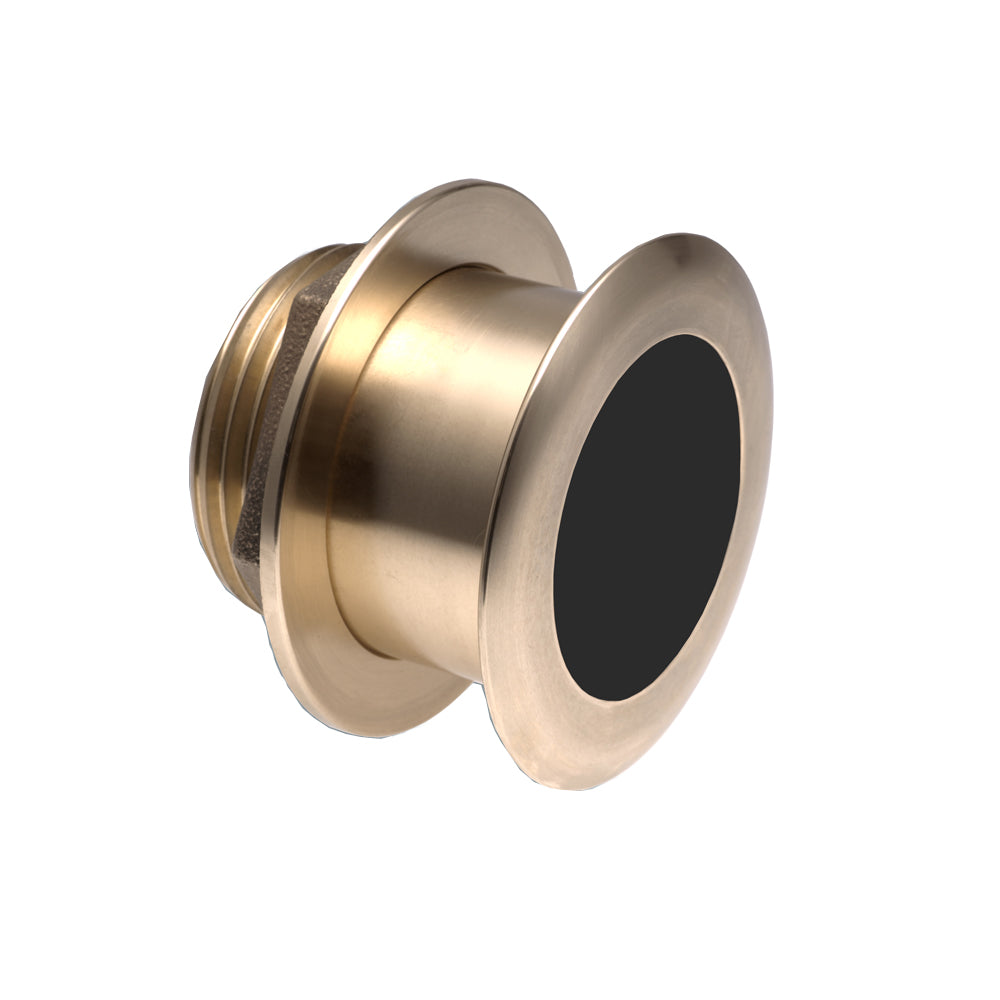

Raymarine 1kW 12 Degree Tilted Element Transducer [A102112]
for product information
2 Great reasons to buy from us:
B164 Tilted Element
12 degree titled version is designed for 8 degree - 15 degree deadrise angles
For use with Raymarine DSM250 or DSM300 sounder modules
Features:
- Depth/Temp
- 50/200 kHz
- 1 kW RMS
- High-performance
- Bronze
Step up to a 1kWWithout a Fairing! Airmar has taken our innovative Tilted Element technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.
Specifications:
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: No
- Temperature: Yes
- Speed Included: No
- Cable Length (Feet): 30'
- Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs
- UPC: 091975000720
Owner's Manual (pdf)
Brochure (pdf)
B164 Tilted Element
12 degree titled version is designed for 8 degree - 15 degree deadrise angles
For use with Raymarine DSM250 or DSM300 sounder modules
Features:
- Depth/Temp
- 50/200 kHz
- 1 kW RMS
- High-performance
- Bronze
Step up to a 1kWWithout a Fairing! Airmar has taken our innovative Tilted Element technology to a higher power. The new 1kW, flush-mount, tilted element transducers are perfect for fast, trailered tournament sport fishing vessels who cannot have a high-performance fairing. The flush mounted, bronze housing protrudes less than 6.35 mm (0.25) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. Take your fishfinder to the next power with Airmars 1kW tilted element transducers.
Specifications:
- Mounting Style: Thru-Hull
- Imagining: Standard
- Chirp: No
- Temperature: Yes
- Speed Included: No
- Cable Length (Feet): 30'
- Box Dimensions: 8"H x 10"W x 12"L WT: 11 lbs
- UPC: 091975000720
Owner's Manual (pdf)
Brochure (pdf)
